| Thermal Insulating Pad | SC-20 | Unit | Test Standard |
| Color | Green | — | — |
| Thickness | 0.25 | mm | ASTM D374 |
| Hardness | 85 | Shore A | ASTM D2240 |
| Density | 2.8 | g/cm³ | ASTM D792 |
| Thermal Resistance @50psi | <0.46 | ℃·in²/W | ASTM D5470 |
| Temperature Range | -40 ~ 180 | ℃ | — |
| Breakdown Voltage | >5.0 | kV | ASTM D149 |
| Tear Strength | ≧15 | kN/m | ASTM D412 |

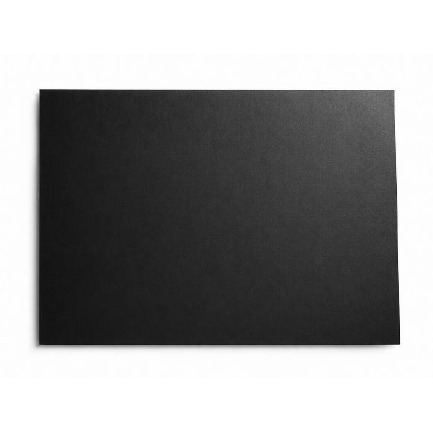

Thermal Insulating Pad SC-20
Features
- High-performance film design
- Low thermal resistance
- Flame retardant UL94 V-0
- Excellent electrical insulation
Thermal Insulating Pad features a high-performance film design that combines low thermal resistance with excellent electrical insulation and a UL94 V-0 flame rating. It is ideal for positions between heat-generating components and heatsinks that require both heat transfer and electrical isolation.
Selection Guide
Thermal resistance <0.46 ℃·in²/W with >5.0 kV breakdown voltage, a balanced choice between thermal performance and voltage rating, commonly used for MOSFETs and rectifiers in power supplies.
Applications
5G, electric vehicles, power supplies, servers, notebooks, desktops, CPUs, ICs, wireless hubs, LEDs, motherboards, heatsinks, LCD TVs, telecom equipment, AIoT and more.
