Thermal Interface Materials (TIMs) are materials used to improve heat transfer between electronic components and heat sinks. TIMs help reduce thermal resistance and improve cooling efficiency in EV batteries, AI servers, LEDs, GPUs, and power electronics.
Why is TIM Important?
TIM materials play a critical role in modern electronics by preventing overheating, improving device lifespan, and enhancing overall performance. They are widely used in AI server cooling systems, EV battery modules, power electronics, and other high-heat applications where efficient thermal management is essential for safety and reliability.
| TIM Type | Feature | Application |
|---|---|---|

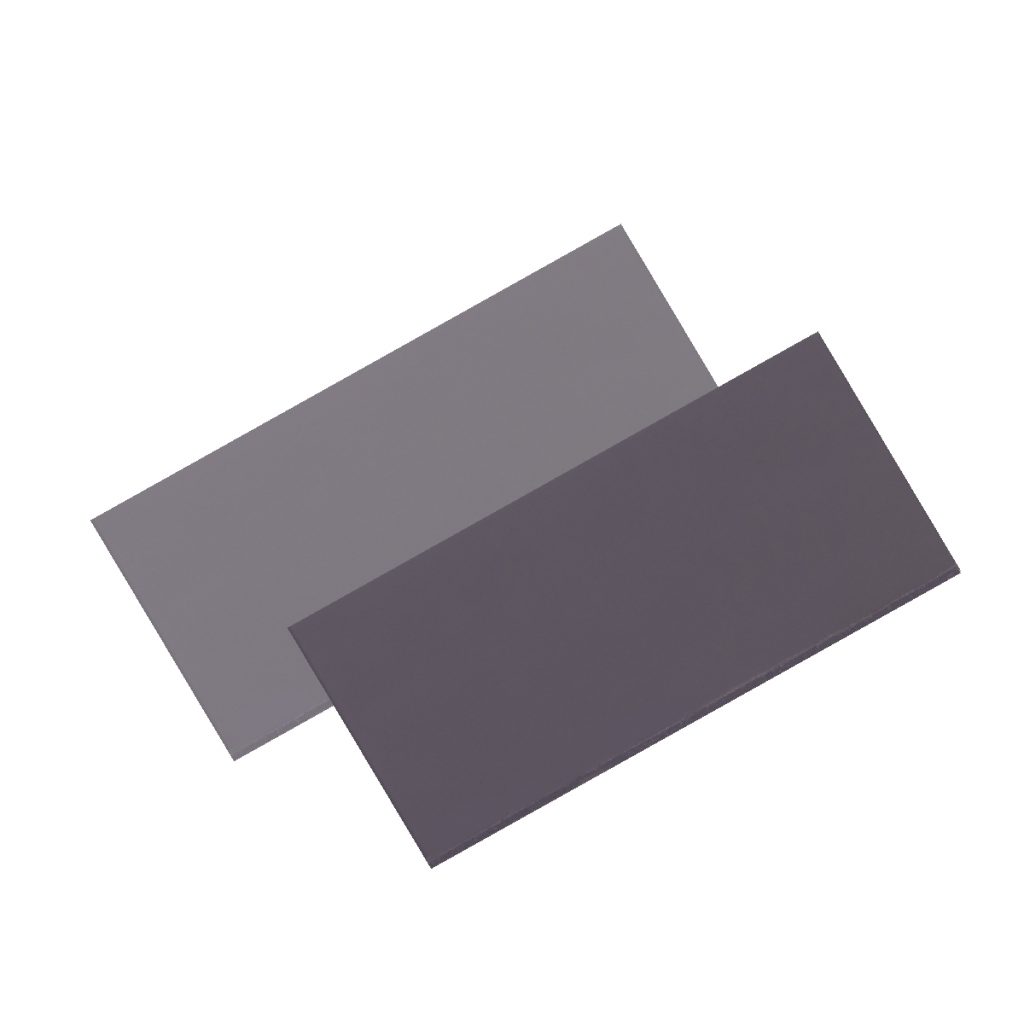

| Thermal Pad | Soft & Easy | EV / LED |
| Thermal Grease | High Contact | CPU |
| Gap Filler | Large Gap | EV Battery |
| PCM | Phase Change | AI Server |
FAQ:
Q1. Is higher W/mK always better?
A: Not always. Higher W/mK means better thermal conductivity, but the best material depends on the actual application.
For example, a very high W/mK material may also be harder, heavier, or less conformable, which can reduce contact efficiency on uneven surfaces. In some cases, overall thermal performance depends not only on conductivity, but also on thickness, pressure, surface flatness, and interface contact.
That’s why selecting the right thermal material is about balancing thermal performance, reliability, and application requirements — not just choosing the highest W/mK value.
Q2. What thickness should I use?
A: The ideal thickness depends on your gap size, surface flatness, and application design.
In general, the thermal material should be thick enough to fully fill the gap between components, but not excessively thick, since thicker materials can increase thermal resistance.
For uneven surfaces or larger tolerances, a softer and slightly thicker material may provide better contact reliability. For tighter assemblies, thinner materials are usually preferred for better heat transfer efficiency.
We normally recommend selecting the thickness based on the actual compression condition and gap measurement of your application.
Q3. Is thermal reuseable?
A: It depends on the material and application condition.
In general, most thermal pads can be reused for temporary testing or short-term evaluation if the pad is still clean and undamaged. However, after compression and long-term use, the material may lose its original shape, adhesion, or thermal performance.
For the best reliability and thermal efficiency, especially in mass production or long-term applications, we usually recommend replacing the thermal pad after removal.
TIM materials are critical for modern electronics cooling. Choosing the right TIM depends on thermal conductivity, compression, reliability, and application environment.
